Test and Master Gauge

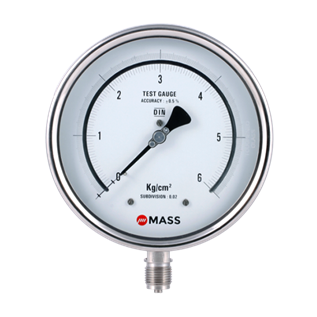

TGS Test Pressure Gauges



Description

TGS, 0.5% Test Pressure Gauge



Size

115mm, 150mm, 250mm



Accuracy

0.5 %



Range

Vac to 15,000 psi, Vac to 1000 bar



Material

SS316L, Monel



Application:

Chemical & petrochemical industry, machine & apparatus construction, food & beverage industry, pulp & paper industry, etc.



Features:

Protection IP65

Dry, liquid filled

Usable to full scale

Overload protection 130 %

Optional external zero adjustment

Rugged stainless steel construction

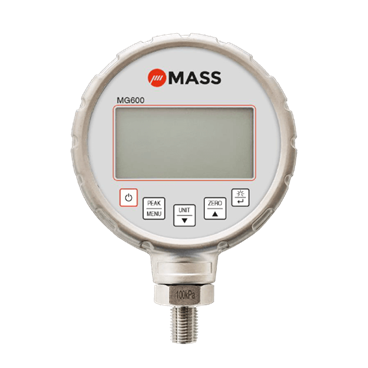

MG600 Digital Pressure Gauge 0.025% Accuracy



Description

MG600 Digital Pressure Gauge 0.025% Accuracy



Size

100 mm (4”)



Accuracy

0.025% of Full Scale

Temperature compensated -10 to 50 °C



Range

Vacuum to 5000 bar



Material

SS 316



Application:

Calibration laboratories

Test benches

Maintenance and repair shop

Process Automation



Features:

Backlight

Data logging

Protection IP66

10 Engineering Units

Analog & Digital Outputs

Zero and Span Calibration

Temperature Compensated

Heavy Duty Die Cast Aluminum Case



MG400 Digital Pressure Gauge 0.1% Accuracy




Description

MG400 Digital Pressure Gauge 0.1% Accuracy



Size

80 mm (3”)



Accuracy

0.1% of Full Scale

Temperature compensated -10 to 50 °C



Range

Vacuum to 5000 bar



Material

SS 316



Application:

Test benches

Calibration laboratories

Maintenance and repair shop

Process Automation



Features:

Backlight

Data logging

Protection IP66

10 Engineering Units

Analog & Digital Outputs

Zero and Span Calibration

Temperature Compensated

Heavy Duty Die Cast Aluminum Case


MGS Master Pressure Gauges



Description

MGS, 0.25% Test Pressure Gauge



Size

150mm, 250mm



Accuracy

0.25%



Range

Vac to 15000 psi, Vac to 1000 bar



Material

SS316, Monel, Beryllium Copper



Application:

Test benches, Calibration laboratories, Maintenance and repair shop, etc.



Features:

Protection IP65

Usable to full scale

Easy access for calibration

Optional external Zero Adjustment

Rugged stainless steel construction


Want to Buy Master Gauge?



Contact Us



Plot No.: 2306, G.I.D.C. Chhatral,

Ta: Kalol,

Dist.: Gandhinagar,

Chhatral -382729, Gujarat, India.

Telephone: +91-2764 233681/82/83

Fax: +91-2764-233440

Email: sales@precisionmass.com

Website: www.precisionmass.com
